XY Spindle Drilling Rig

  • XY Spindle Drilling Rig
  • XY Spindle Drilling Rig
  • XY Spindle Drilling Rig
  • XY Spindle Drilling Rig

XY Spindle Drilling Rig

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 10 Set/Sets
    Delivery Time: 30 Days
    Packaging: steel box
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 10 Piece/Pieces per Month
    Certificate: ISO9001 ,CE
    Port: Qingdao,,

Basic Info

Model No.: XY-1

Product Description

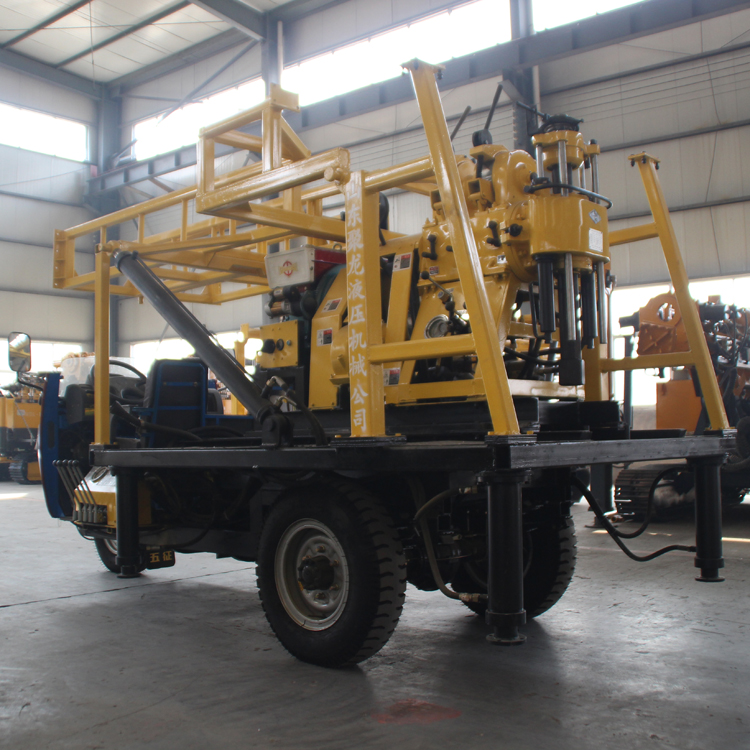

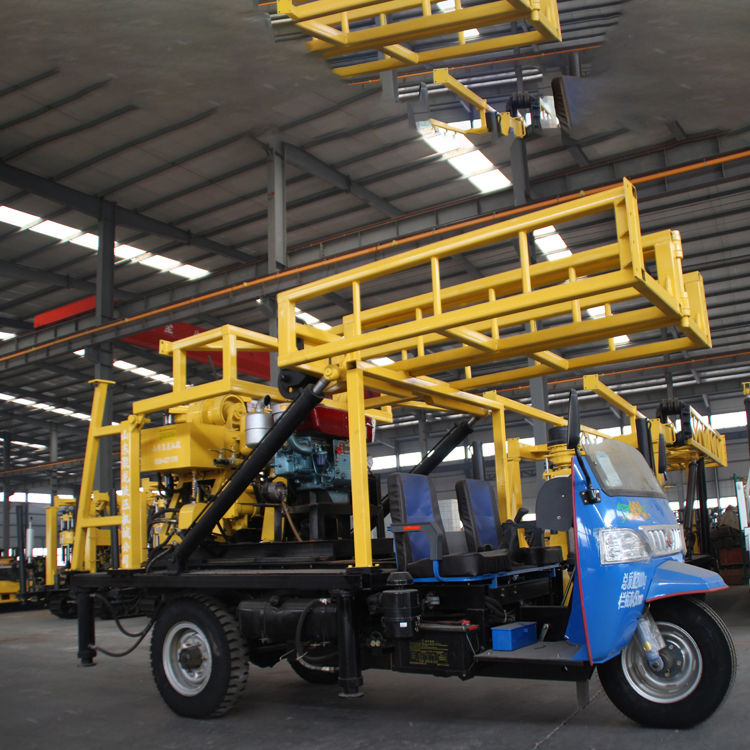

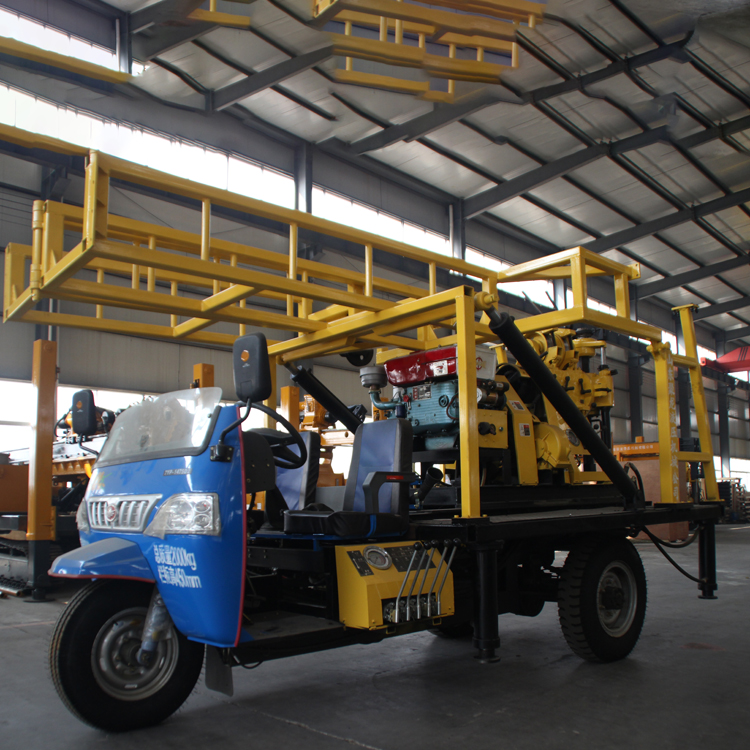

3-Wheel Truck Mounted Small Water Well Drilling Rig, XYX-1/XYX-1A

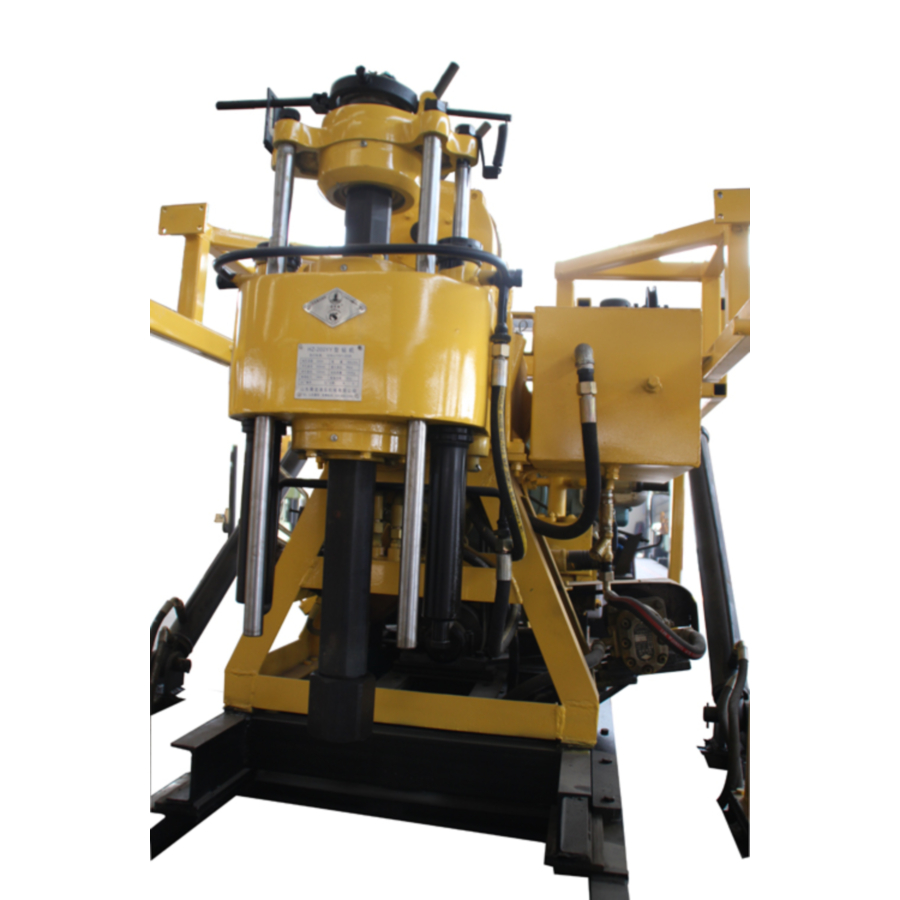

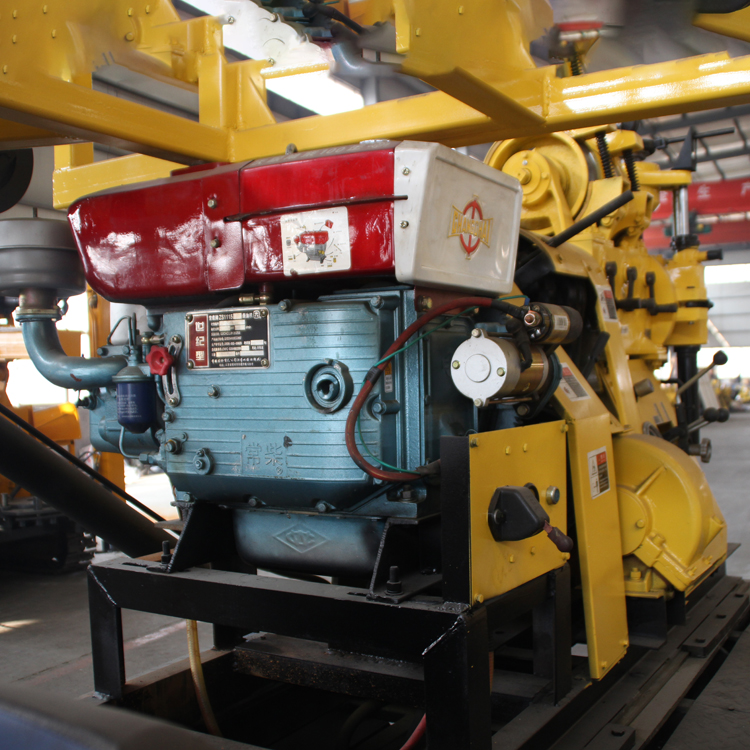

The water well drilling rig mounted on a 3-wheeled truck is specially designed to meet your requirements for high efficiency and excellent mobility in outdoor drilling works. With reasonable structure, it provides ease of operation and maintenance and does not need crane for lifting in drilling sites. In addition to water well drilling, this truck mounted drill rig is also suitable for geological survey and exploration purpose. Features: 1. Hydraulic rotation head; 2. All components including mast, winch, mud pump etc. are mounted on the three wheel truck, with rational layout; 3. Equipped with BW-160 or BW-250 mud pump which are superior in their class; 4. A moving mechanism enables the drilling rig to move forward and backward for easy operation; 5. The mast is hydraulically driven to erect Technical Parameters
XYC Series Small Water Well Drilling Rig, 3-Wheeled Truck Mounted
Models
XYC-1
XYC-1A
Drilling depth (m)
130
180
Hole size, top (mm)
220
220
Hole size, bottom (mm)
75
75
Drill rod diameter (mm)
50/60
50/60
Drilling angle (°)
90-75
90-75
P ower (Kw)
13.2
13.2
Weight (Excluding power unit) (kg)
2750
2800
Overall dimensions (L x W x H) (m)
4x1.7x2.3
4x1.7x2.3
Spindle
Speed (r/min)
142/285/570
130/300/480/730/830/1045
Travel (mm)
450
450
3-Wheeled Truck
Model
WUZHENG,
WUZHENG,
7YP-1475D1
7YP-1475D1
Emission Standard
GB19756-2005( Ⅱ )
GB19756-2005( Ⅱ )
Rated Power (kW)
18.3kW
18.3kW
Rated speed (RPM)
2200
2200
Drill Mast
Rated load (ton)
18
18
Effective height (m)
6.5
6.5
Mud Pump
Flow (L/min)
160
160
Max. pressure(Mpa)
1.3
1.3
Reciprocating times per minute
165
165
Inlet hose dia. (mm)
51
51
Outlet hose dia. (mm)
32
32
